PRODUCT

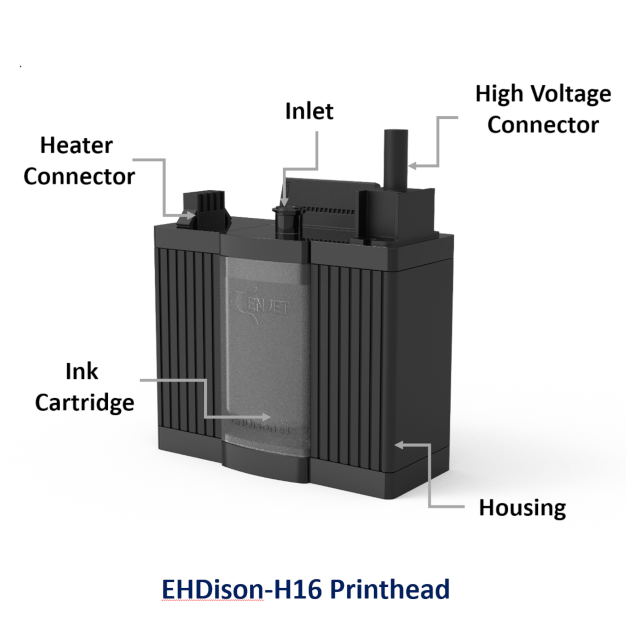

EHDison-H16 Printhead

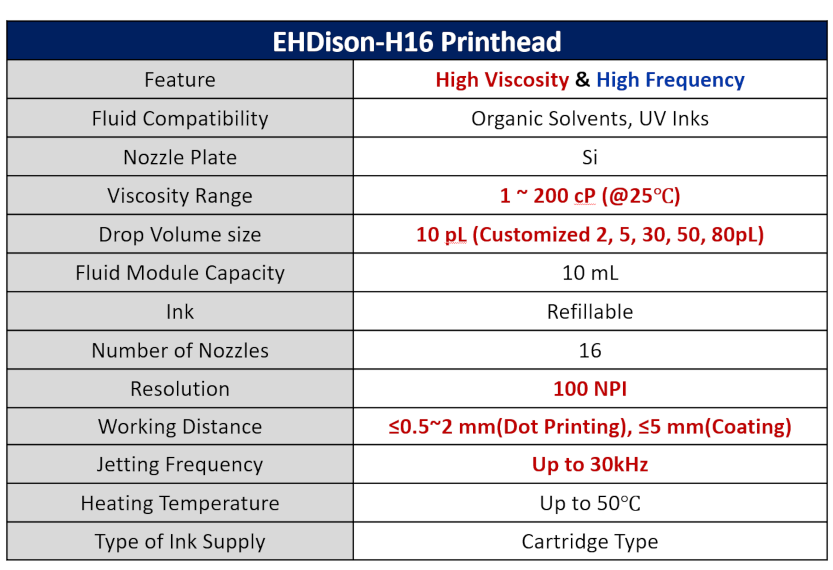

| Items | Description |
|---|---|
| Feature | High Viscosity & High Frequency |
| Viscosity Range | 1 ~ 200 cP (@25℃) |
| Drop Volume size | 10 pL (Customized 2, 5, 30, 50, 80pL) |
| Resolution | 100 NPI |
| Working Distance | ≤0.5~2 mm(Dot Printing), ≤5 mm(Coating) |
| Jetting Frequency | Up to 30kHz |
| Fluid Compatibility | Organic Solvents, UV Inks |
| Fluid Module Capacity | 10 mL |
| Number of Nozzles | 16 |
